Main FeaturesHigh Efficiency Solar Panel:Equipped with high efficiency Mono solar panel that can effectively convert sunlight into electrical energy, ensuringoptimal performance and energy generation.
Long-Lasting Lithium lron Phosphate (LiFePO4) Batteries:These batteries are known for their longevity and ability to withstand numerous charge cycles, providing reliableenergy storage for the street lights.
MPPT Controller for Optimal Energy Management:The Maximum Power Point Tracking (MPPT) controller ensures that the solar panels operate at their maximumefficiency, enhancing the overall performance of the street light system.
Compact and Integrated Design:The all-in-one design integrates the solar panel, battery, LED light, and controller into a single unit, simplifyinginstallation and reducing the need for external wiring.
Low Maintenance and Cost-Effective:The all-in-one design and use of high-quality components result in minimal maintenance needs, and the long-termsavings on energy bills make these lights an economically viable option.
 |
 |
| High Luminous >200lm/w Microwave Mono Solar Panel Efficiency>23% LiFePO4 Battery A-Grade |
| Models |
KASN-20w |
KASN-40w |
KASN-60w |
KASN-30w |
KASN-60w |
KASN-80w |
| Rated Power |
20W |
40W |
60W |
30W |
60W |
80W |
| Solar panel(W) |
6V/70W |
6V/90W |
6V/120W |
18V/70W |
18V/90W |
18V/120W |
| Battery(Wh) |
192WH |
320WH |
512WH |
384WH |
512WH |
640WH |
| LED Quantity |
150pcs |
200pcs |
300pcs |
150pcs |
200pcs |
300pcs |
| Light Efficiency(LM/W) |
192WH |
320Wh |
512Wh |
384Wh |
512Wh |
640Wh |
| Discharge Time |
12h,2-3 rainy days |
| IP Grade |
IP65 |
| Installation Height(M) |
5-7 |
6-8 |
8-10 |
5-7 |
6-8 |
10-12 |
| Luminance Value(LUX) |
>30 |
>30 |
>30 |
>25 |
>25 |
>25 |

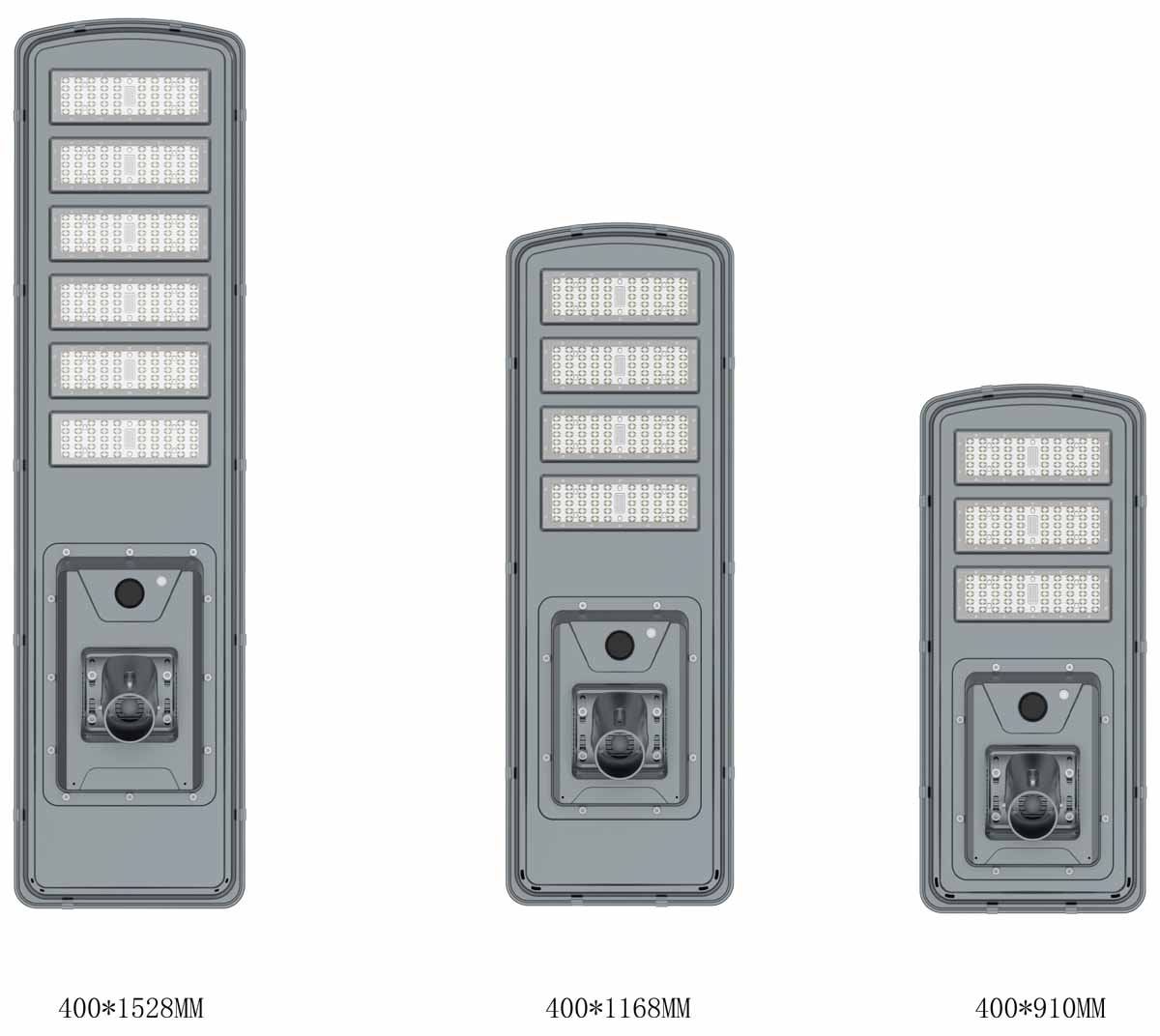

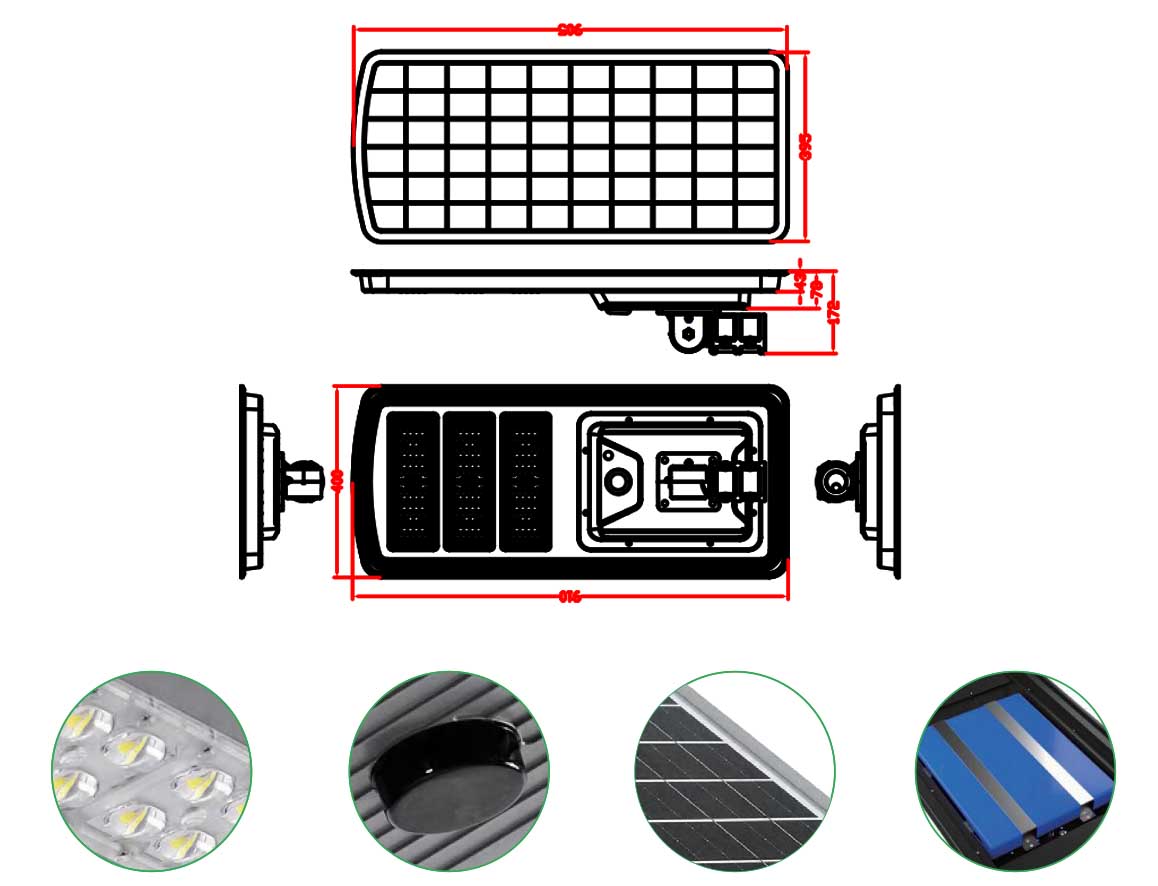

| Product Size(mm) |
910*400*280 |
1168*400*280 |
1528*400*280 |
910*400*280 |
1168*400*280 |
1528*400*280 |
| Packaging Size(mm) |
1115*440*145 |
1370*440*145 |
1735*440*145 |
1115*440*145 |
1370*440*145 |
1735*440*145 |
| 20ft Quantity |
400 |
320 |
240 |
400 |
320 |
240 |
| 40HQ Quantity |
860 |
640 |
480 |
860 |
640 |
480 |

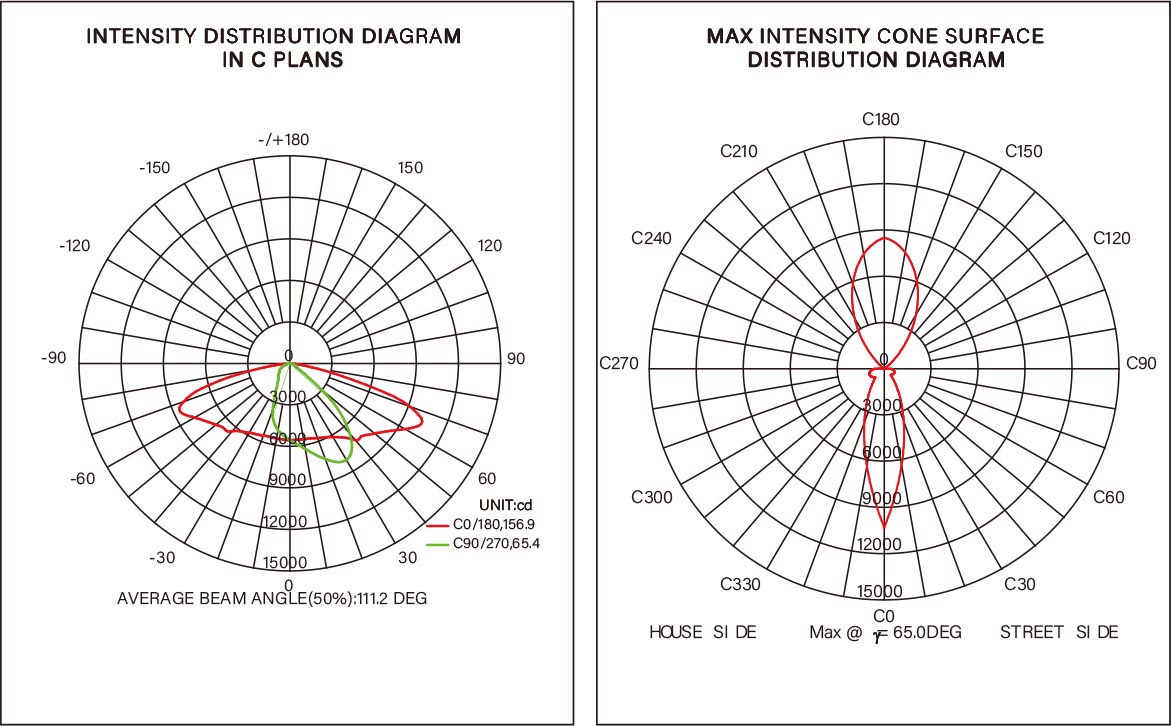

Optimized Optics
Solar power street lamps with a brightness level greater than200lm/W are designed to provide efficient and sustainable illumina-tion. These lamps are equipped with optimized optics lenses thatenhance light distribution and reduce energy consumption. Thehigh luminous efficacy of over 200lm'W means that for every wattof power consumed, the lamp emits more than 200 lumens of light,making them an energy-efficient choice for street lighting
The optimized optics lens plays a crucial role in directing the lightoutput in a controlled pattem, which helps in reducing glare andlight pollution while ensuring that the light is focused on the areasthat need illumination, This is particularly important for solar-pow-ered street lamps, as it maximizes the use of the solar energyharvested during the day.
|
 |
